New Age Engineering Precast boundary wall is a high quality precast concrete walling system featuring natural looking stone textures and architectural form finishes on both sides of the wall. Our attention to detail and refusal to cut corners, results in long lasting and highly durable fencing structures.
Our walls provide a quieter and more aesthetically pleasing environment for residential, commercial and industrial applications.
New Age Engineering Precast is the first company to introduce form texture appearance on both sides of the wall. New Age Engineering walls come with a Uni-Cast System wherein the column and panel are cast as one integrated unit. We also the first one to introduce the Static footing support system, which provides safe secure and immediate support to the panels after being installed.
We at New Age Engineering offer you the most advanced precast forming system to manufacture these precast walls.
PRECAST WALL PRODUCT
The New Age Precast Walling System is a highly effcient wall design, manufactured vertically with the column and panel integrally cast as a single wall section. New Age Walls are supported with structural steel support columns embedded in caissons located sixteen feet on-center. The walls are available in heights from six to twelve feet. Walls have formed textures on both sides with reflective sound barrier qualities.

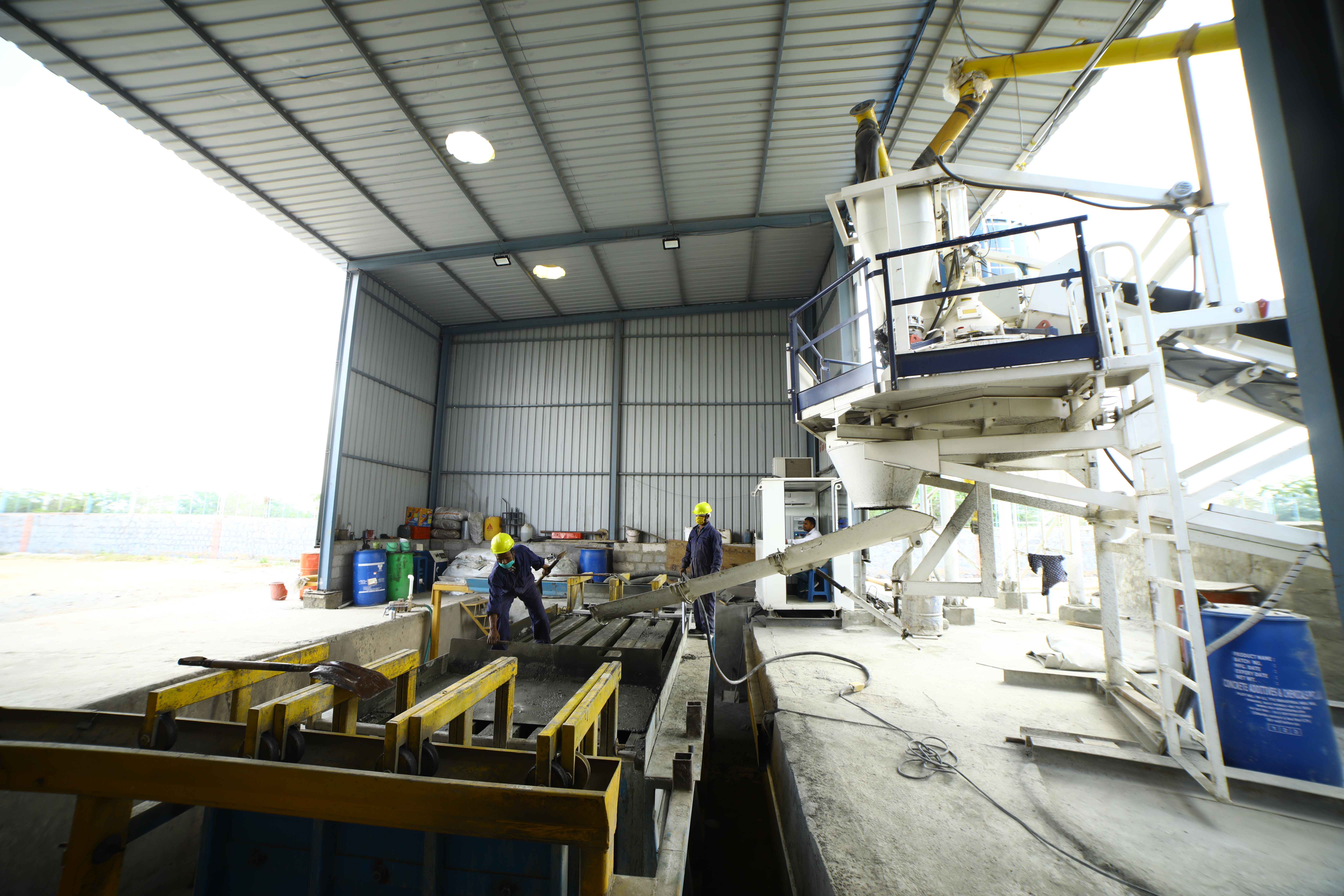

FLEXIBILITY OF OPERATION TO OPERATE THE PLANT IN
1
Indoor Casting Pit
2
Outdoor Casting
3
On Site Casting
| WALL COMPARISION | NEW AGE ENGINEERING PRECAST WALLING SYSTEM | TRADITIONAL PANEL SYSTEM |
|---|---|---|
| Product | ||
| Wall | Column and wall cast together as one piece | Column and wall cast as two separate pieces |
| Length | 16 feet, fewer footings | 5–12 feet, more footings |
| Wall columns | 18 inch square | 4–12 inches |
| Columns Caps | Caps fit without grouting | Mostly not present, if yes – needs grouting |
| Labour | 50% less due to fewer panels | Labour intensive |
| Texture | Highly defined stone textures | Plain or less defined |
| Footing Type | I-Beam in concrete footing | Small footings, direct embed |
| Installation Safety | No bracing needed | Needs bracing until complete |
| Stability | Each wall ~3 tons, very stable | Thin, short life span |
| Reinforcement | 12 mm rebar & fibers | Thin wires |
| Transport, Handling & Storage | ||
| Transportation | Directly on truck platform, no racks | Requires frames/supports, costlier |
| Storage | Stand vertically, self-supported | Needs racks/support system |
| Removing and Reinstall | Possible if columns not grouted | Not possible (grouted) |
| Production | ||
| Production Area | 5000 sq feet | Requires large area |
| Liners | High quality German/American liners | Low grade, wears easily |
| Casting | Vertical casting, textures both sides | Horizontal, one-side texture only |

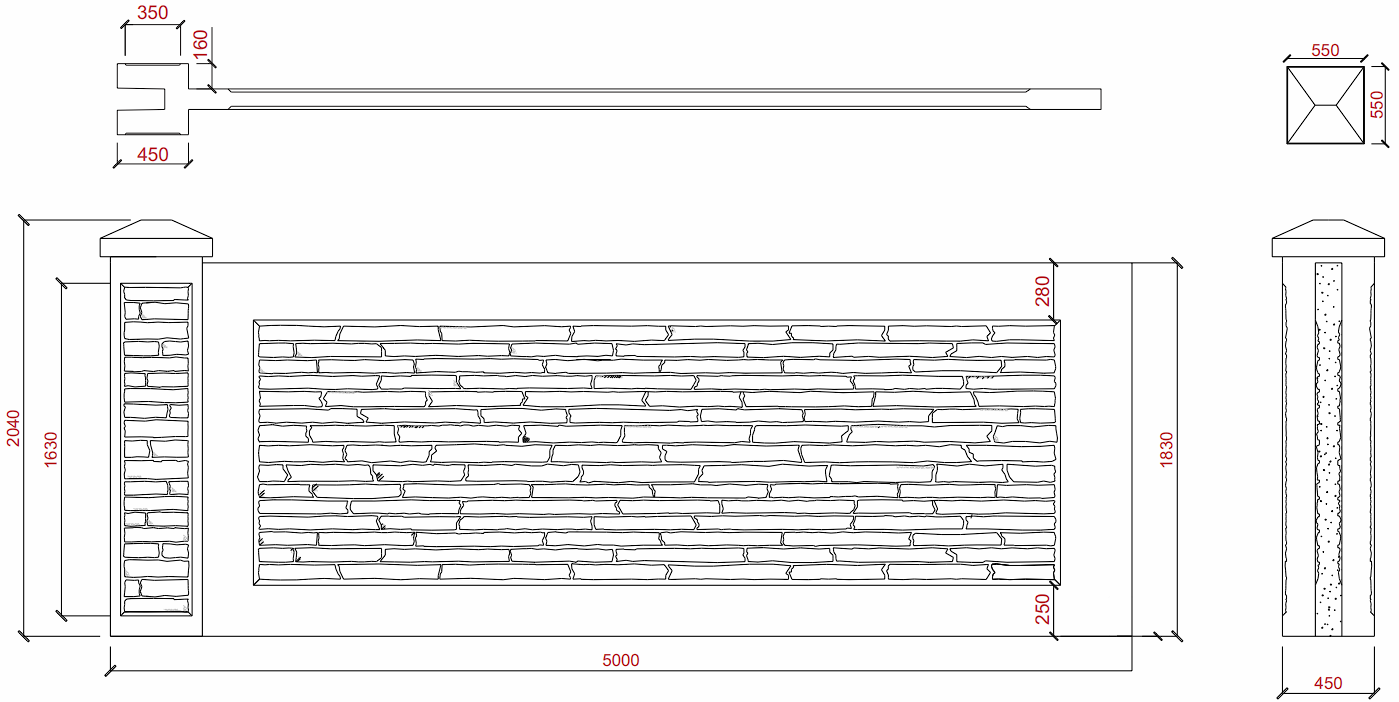

Standard Walling System

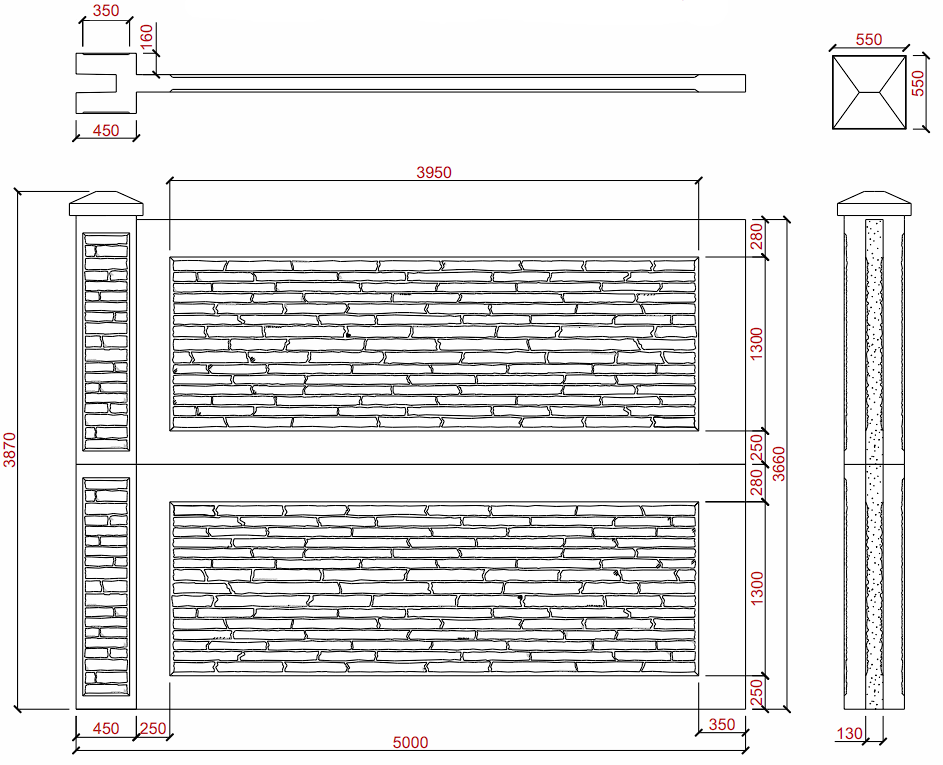

Double Stacked Walling System
Become a Manufacturer:
Now you too can own a local New Age Precast Wall Systems business. New Age precast wall forming equipment is a great business opportunity available for purchase in your area. We offer a system of licensing agreement to use the equipment in a specific geographical area. As part of the licensing agreement, New Age Engineering Solutions LLP provides the training for you and your employees in all phases of the manufacturing and installation operations. In addition to the training, New Age Engineering Solutions offers support for any problems or queries you may have during the production of installation stage.
